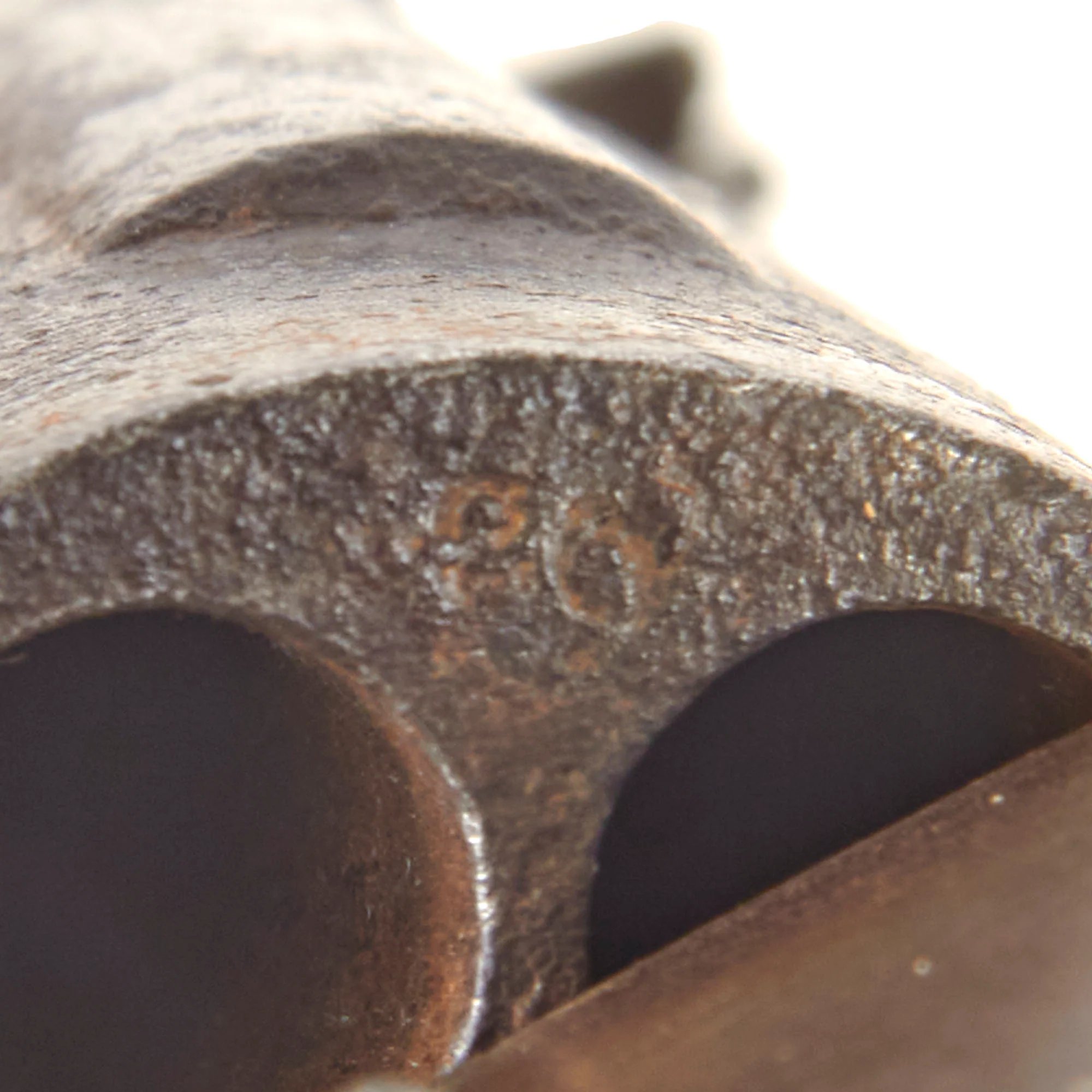

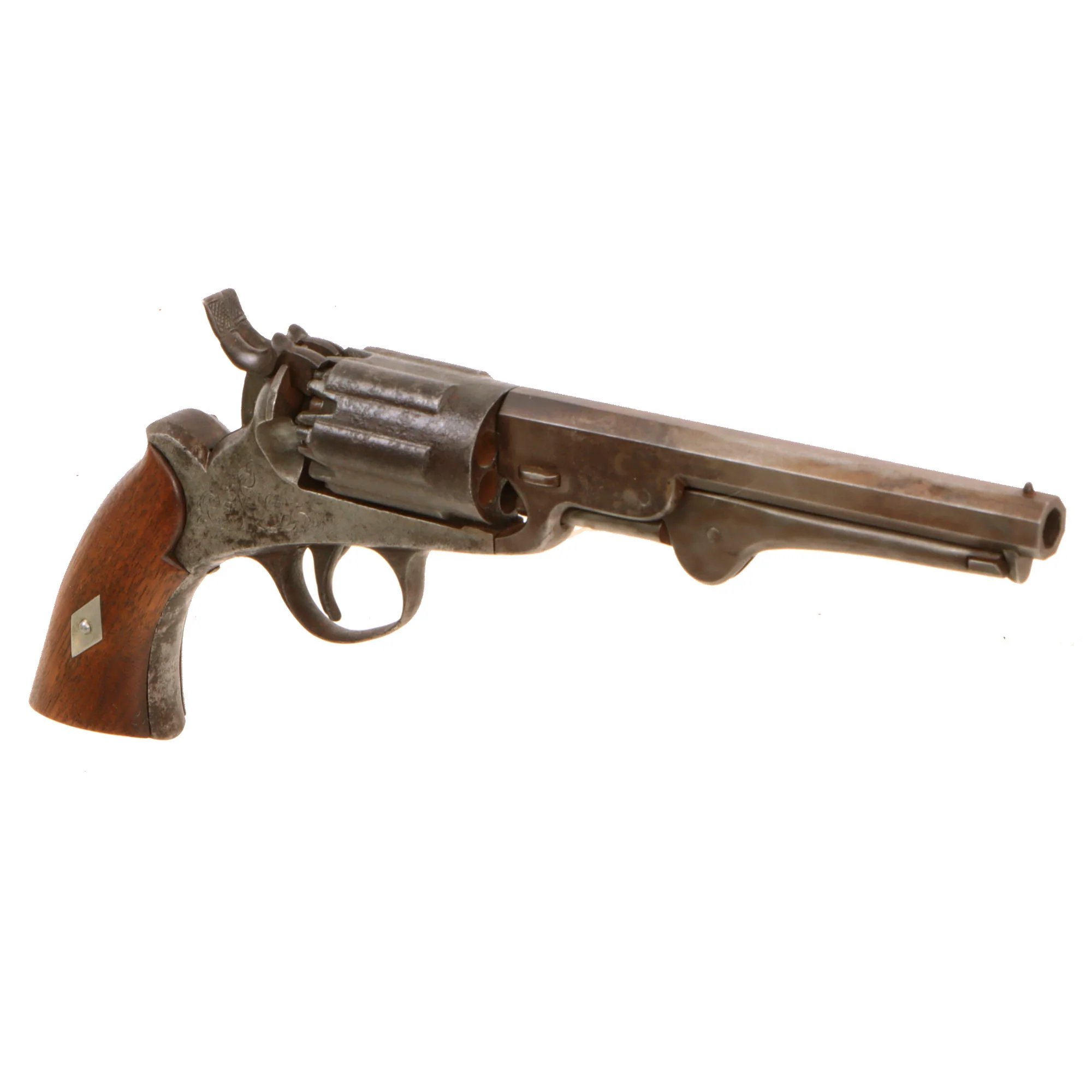

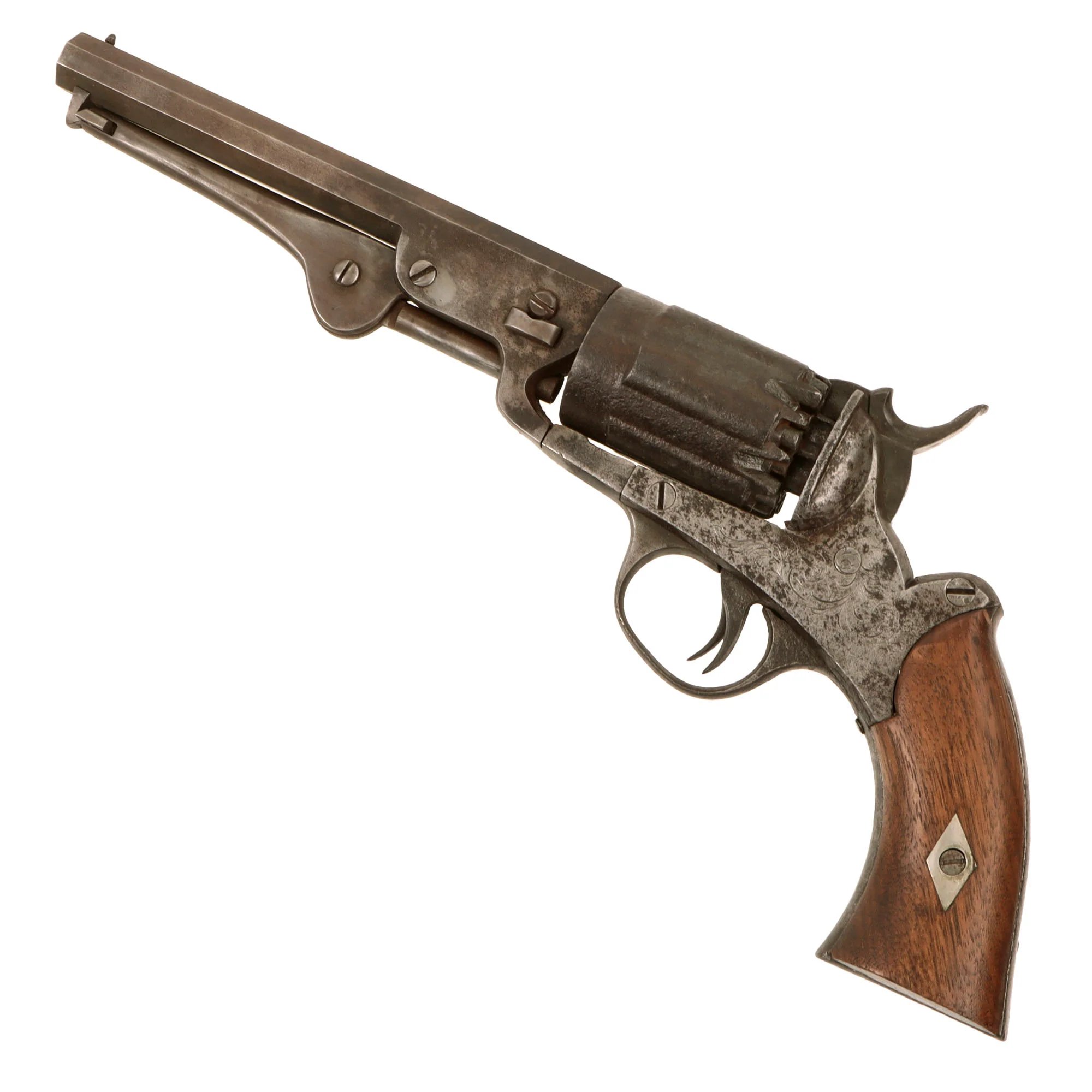

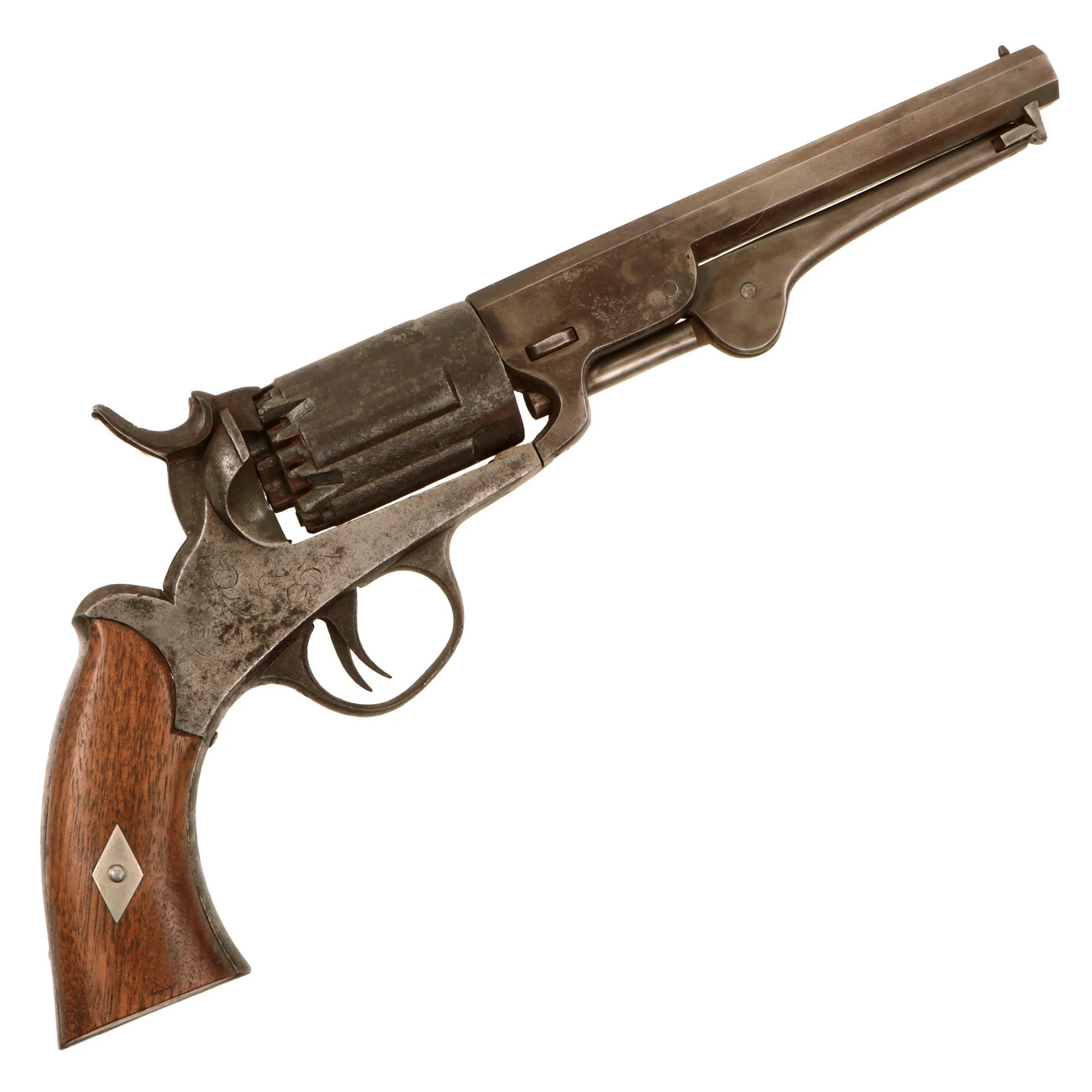

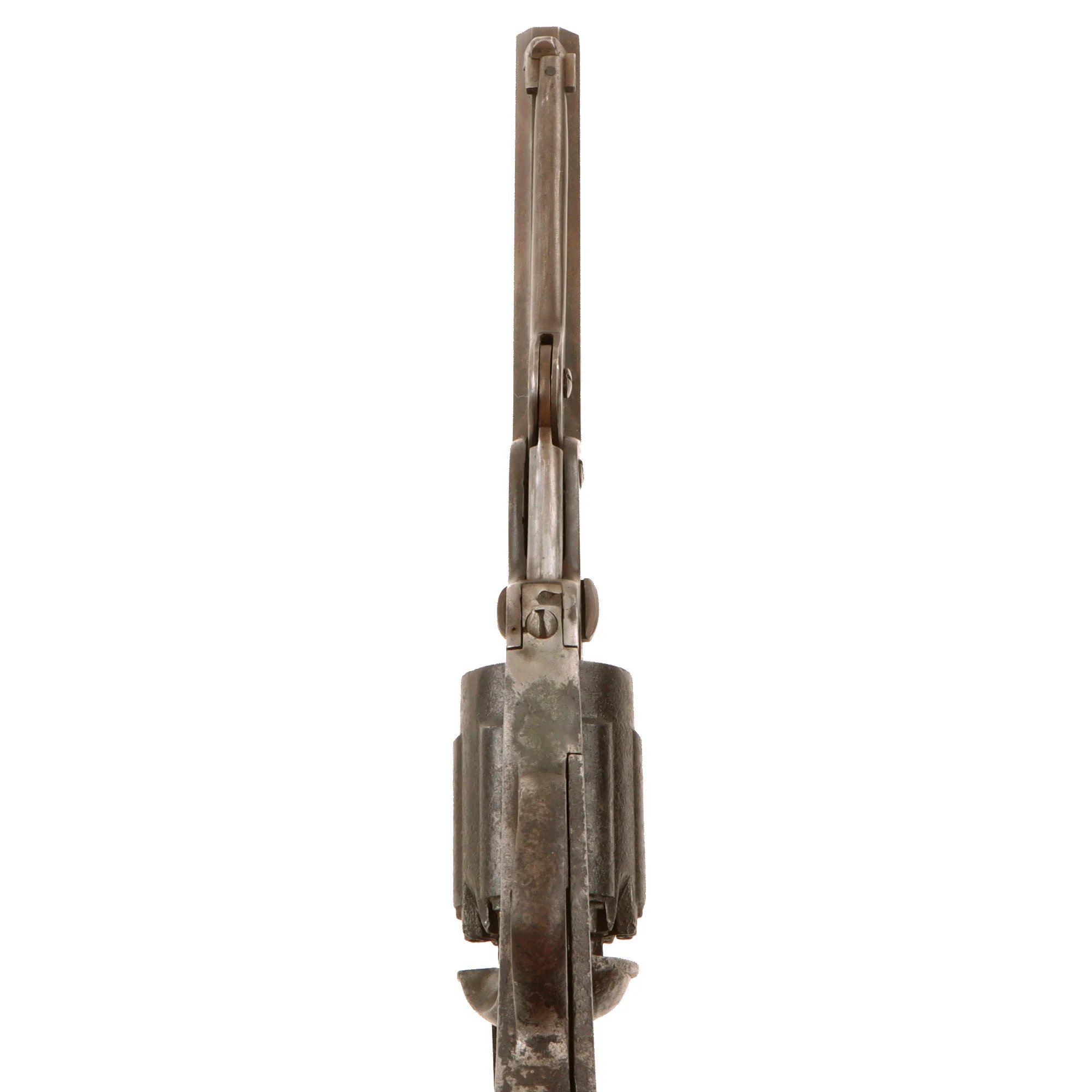

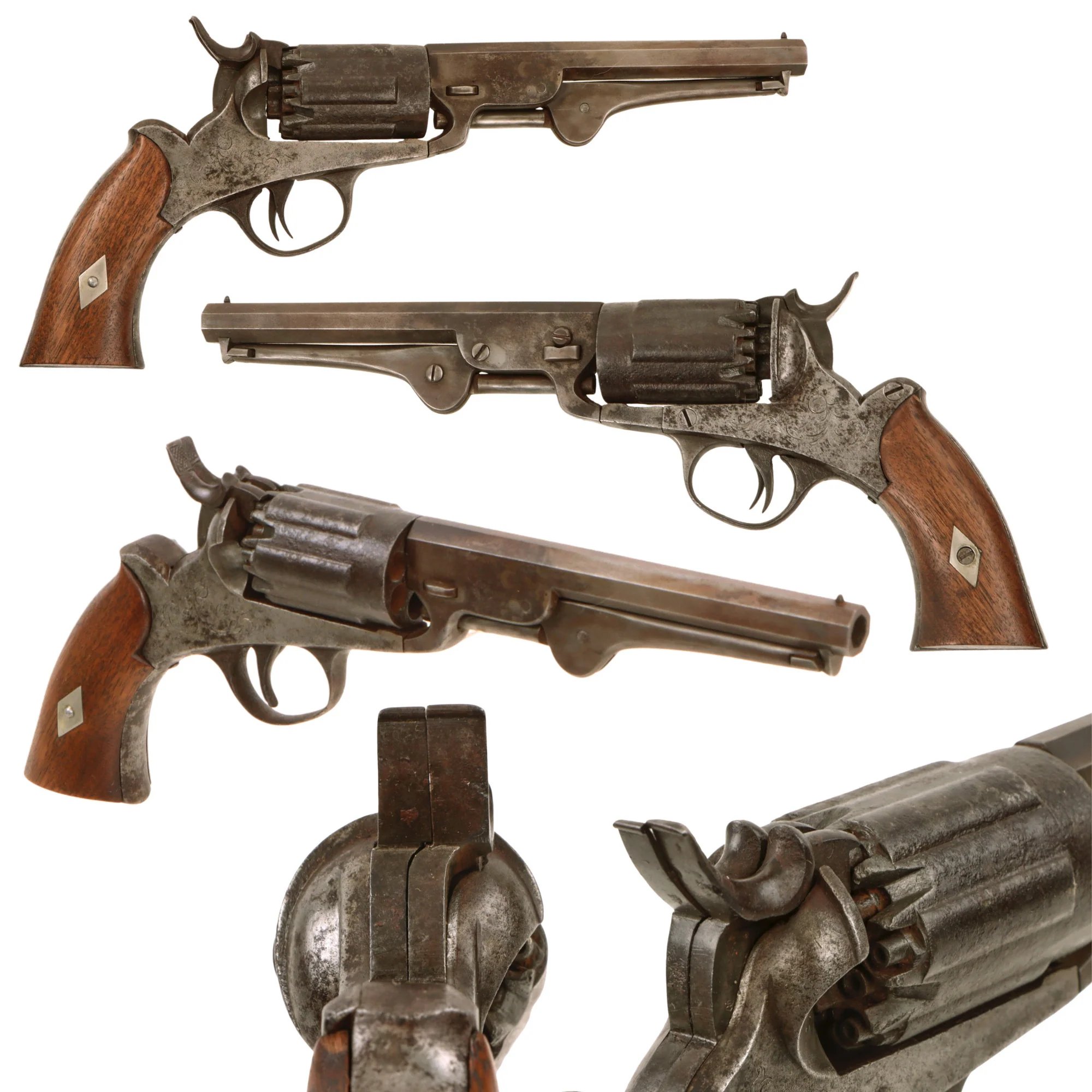

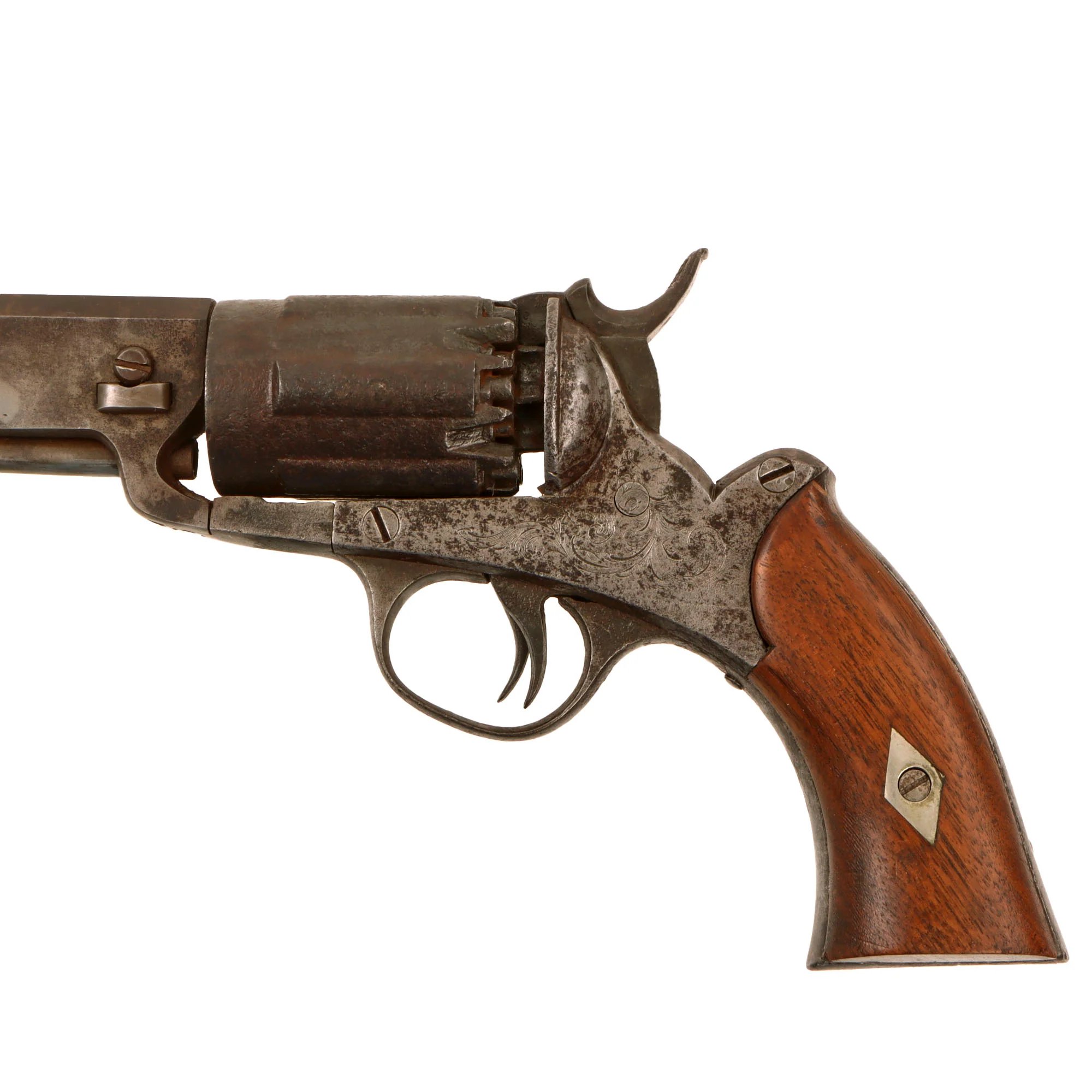

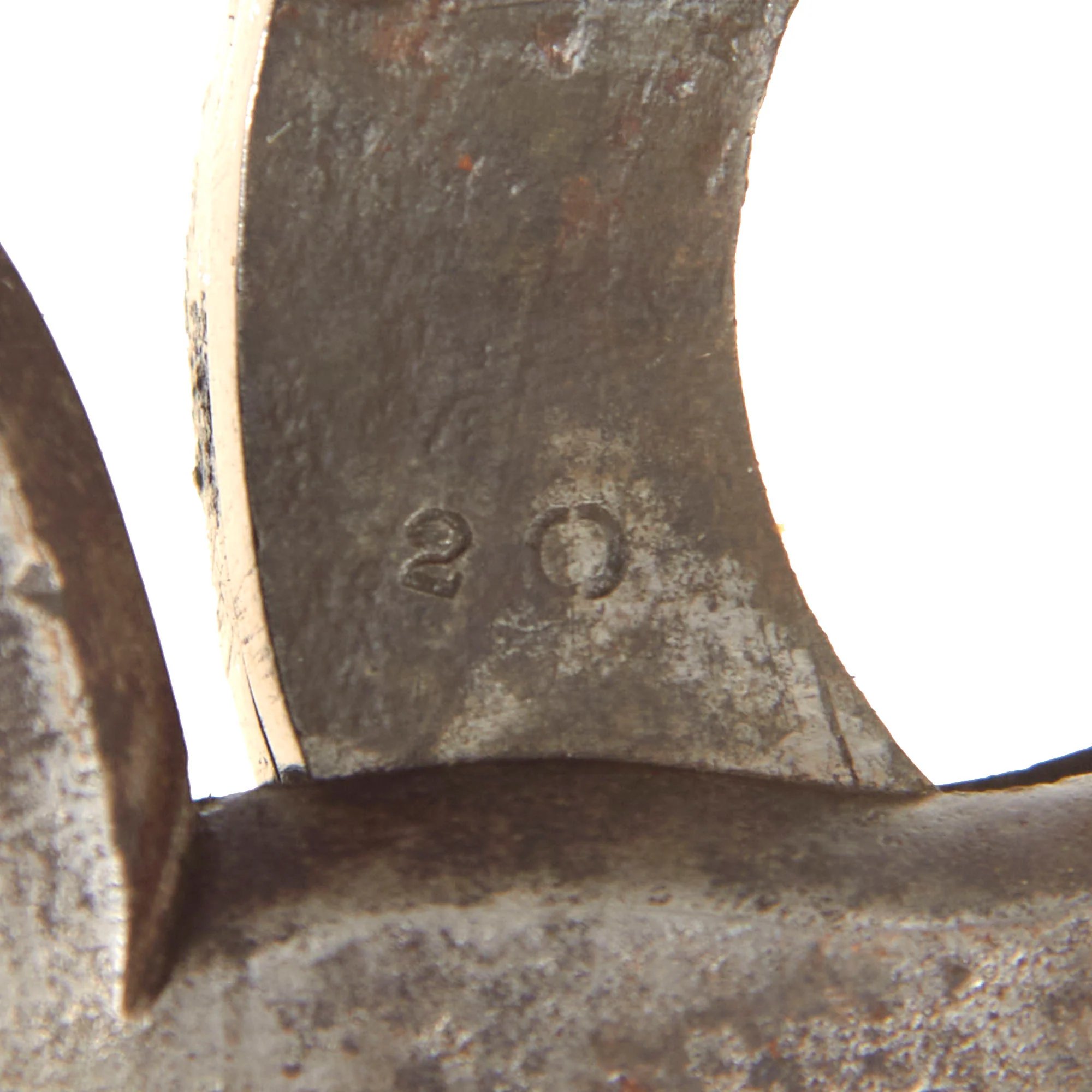

Original U.S. Civil War Rare John Walch 1859 Patent .36cal Navy Six Chamber 12 Shot Percussion Revolver Serial 20 - Only 200 Ever Made Circa 1859 - 1862

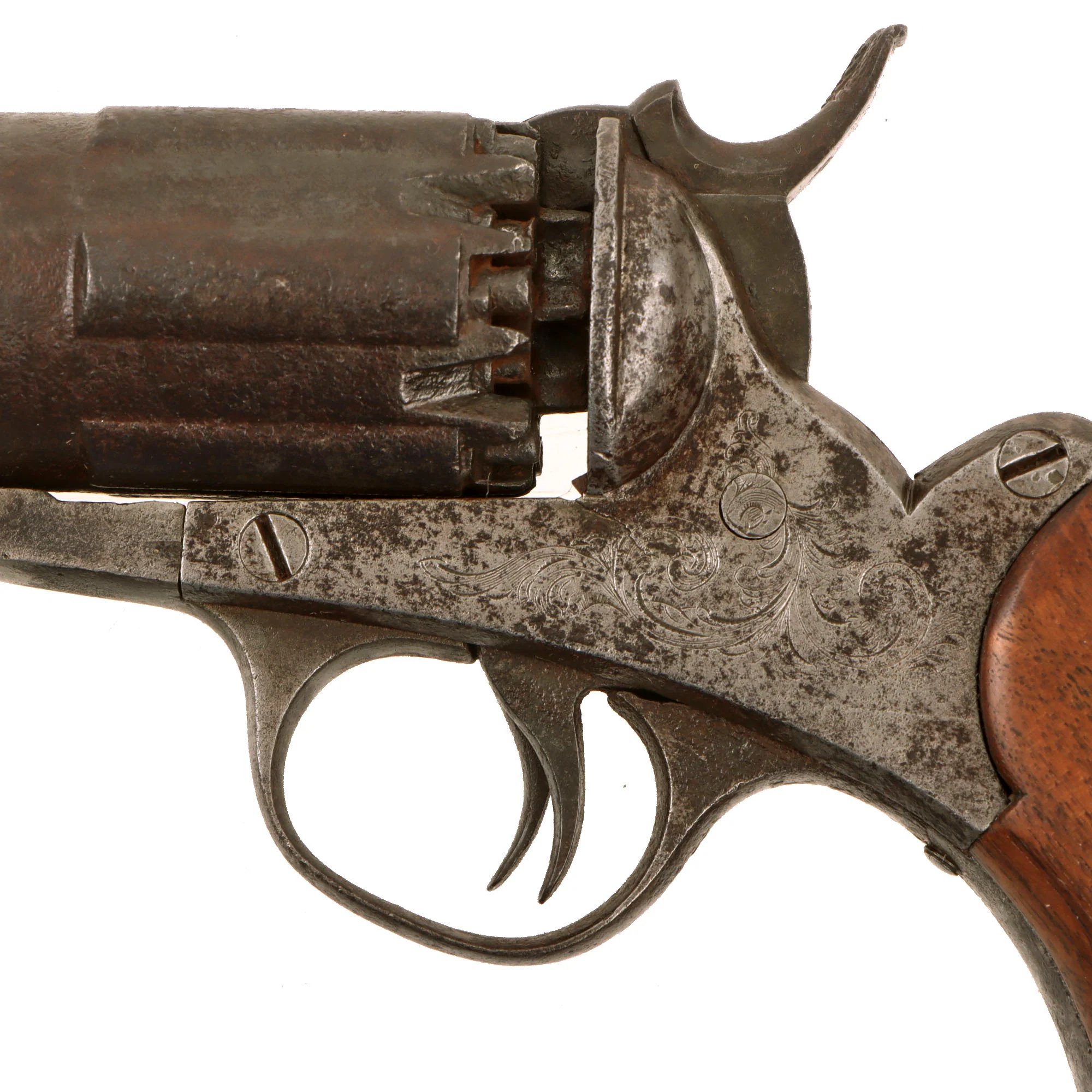

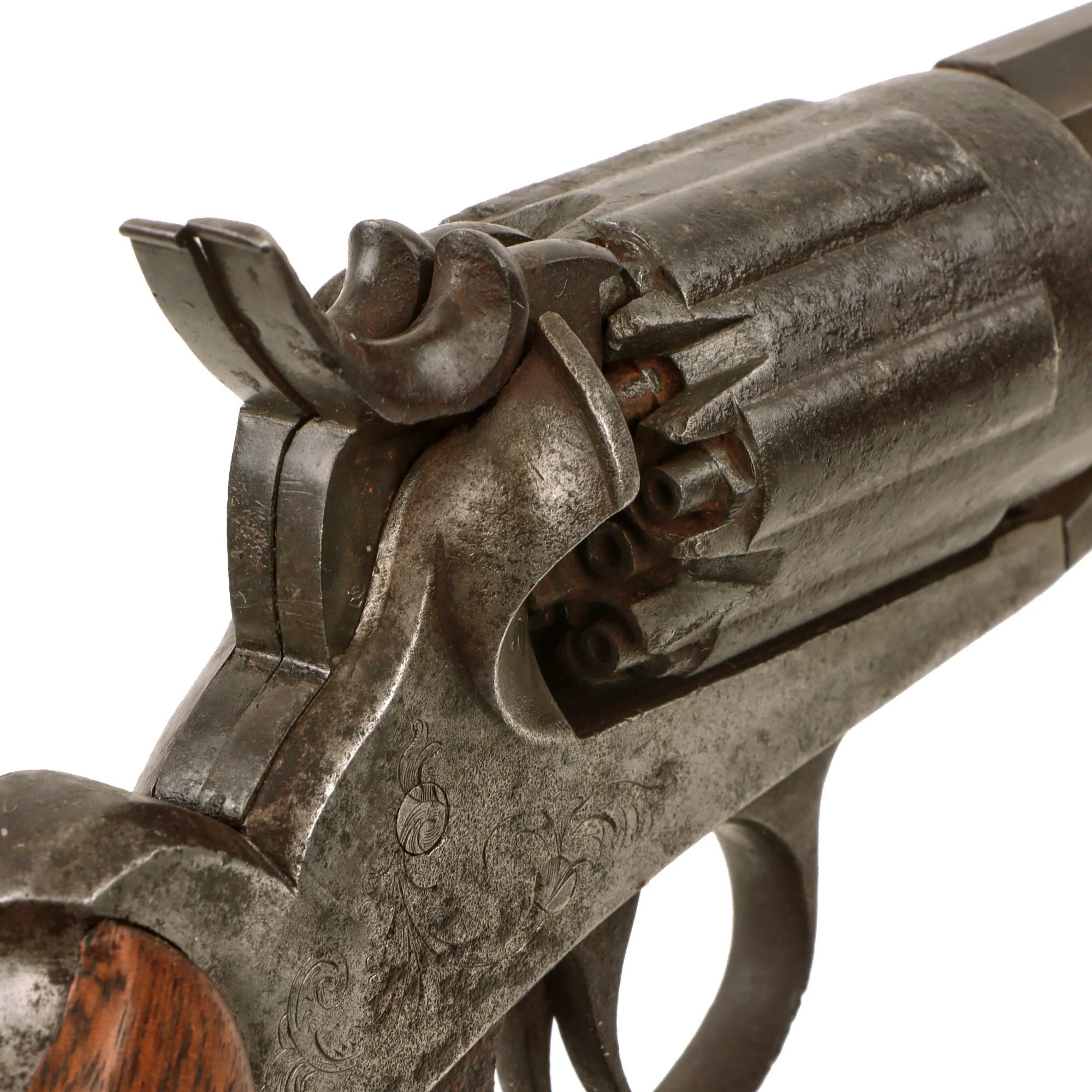

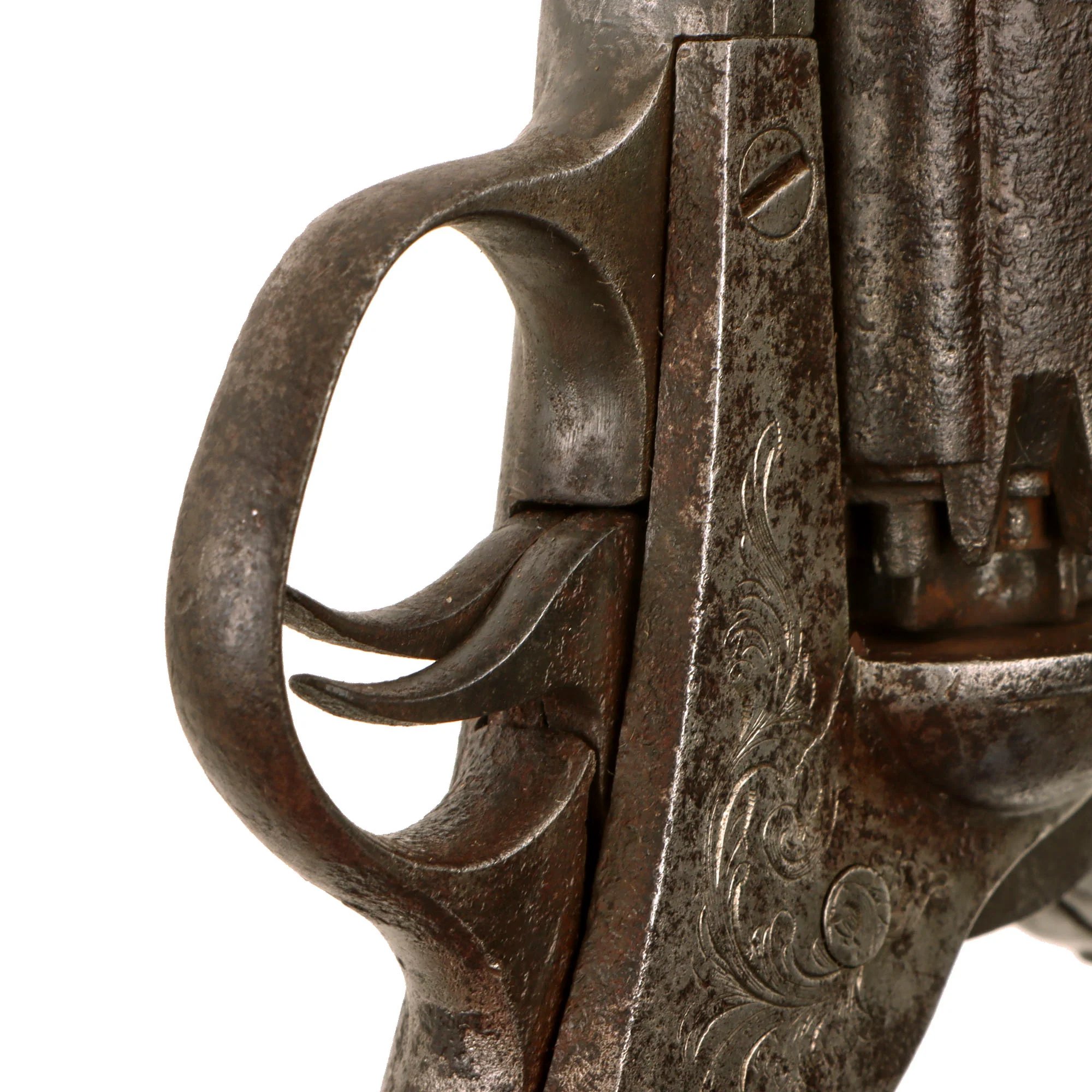

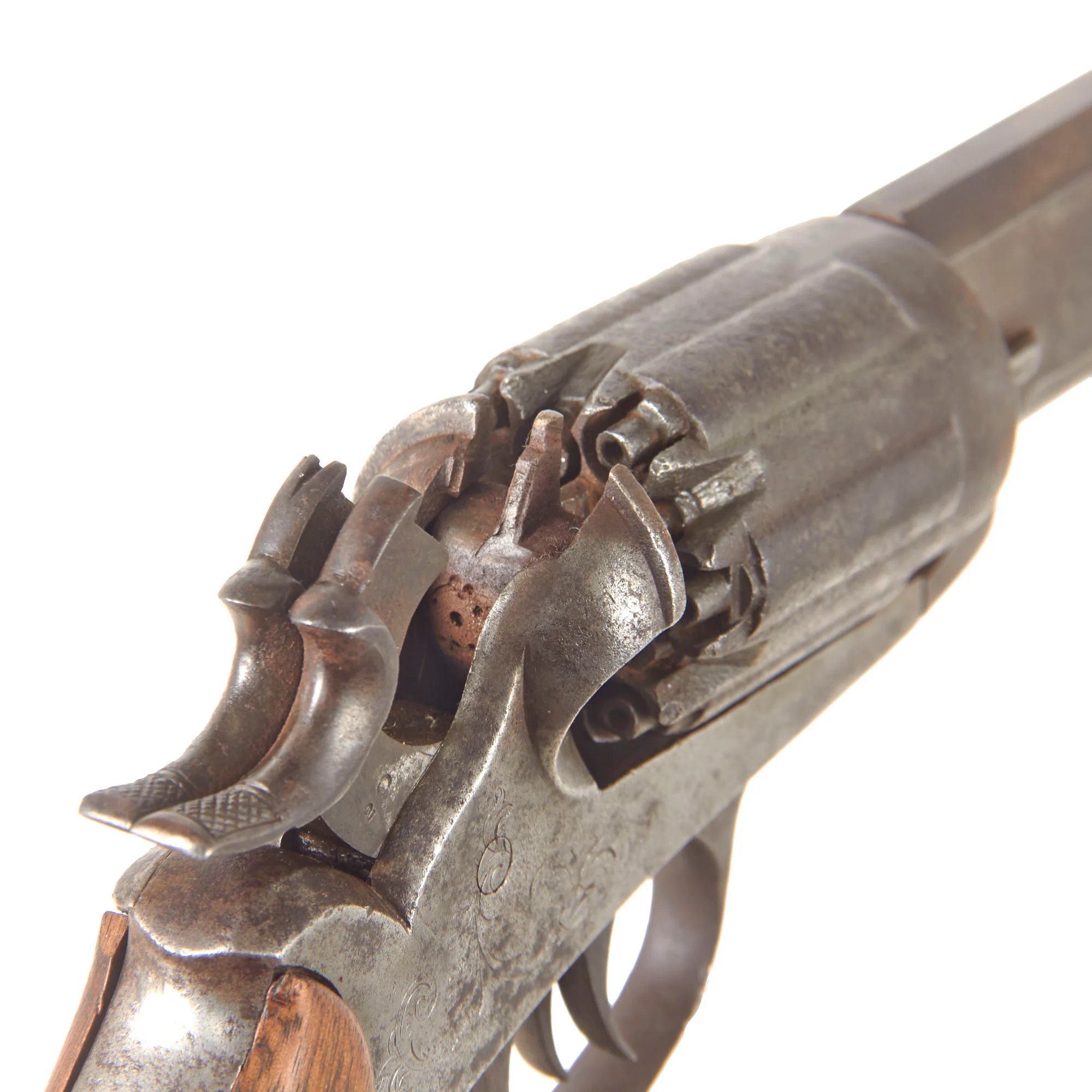

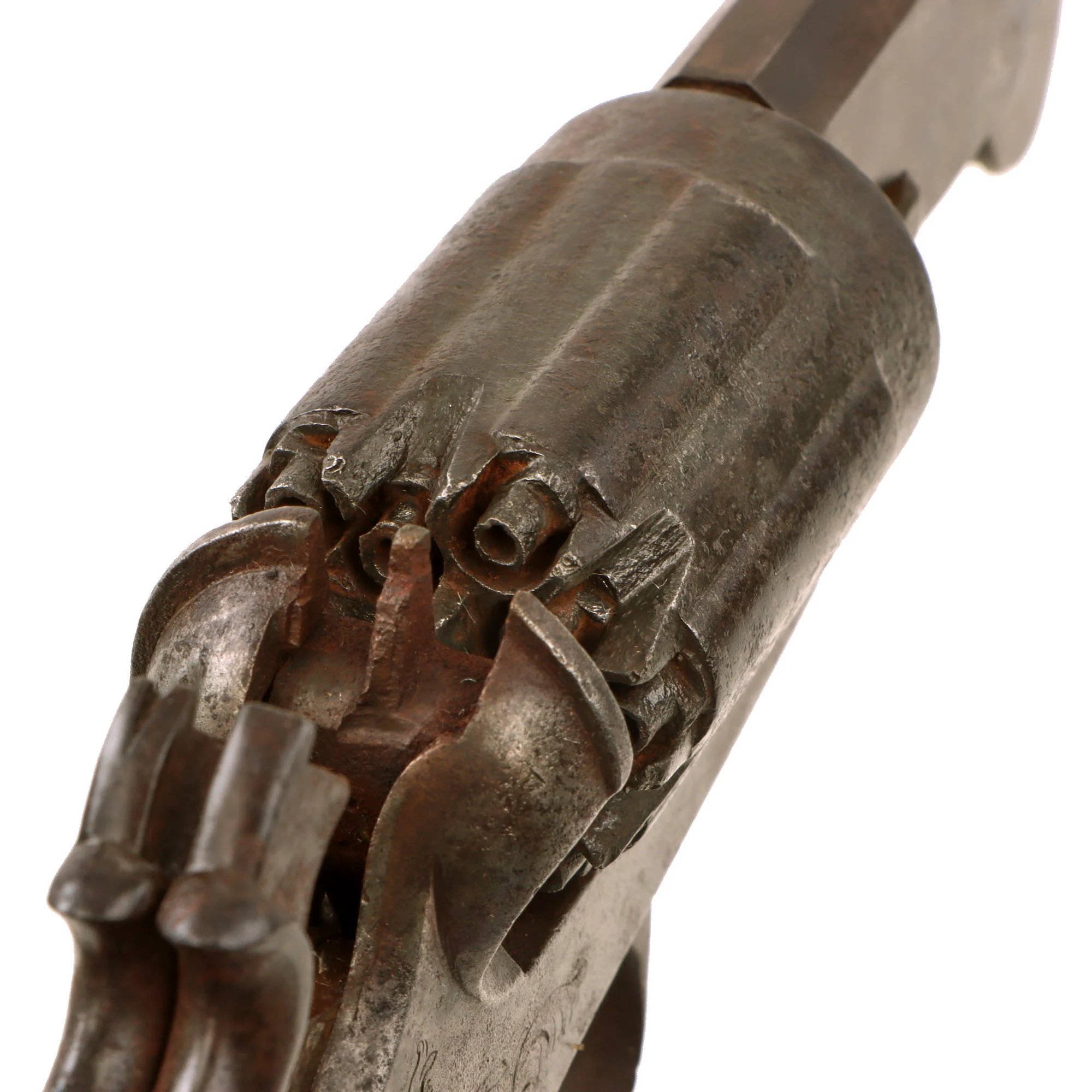

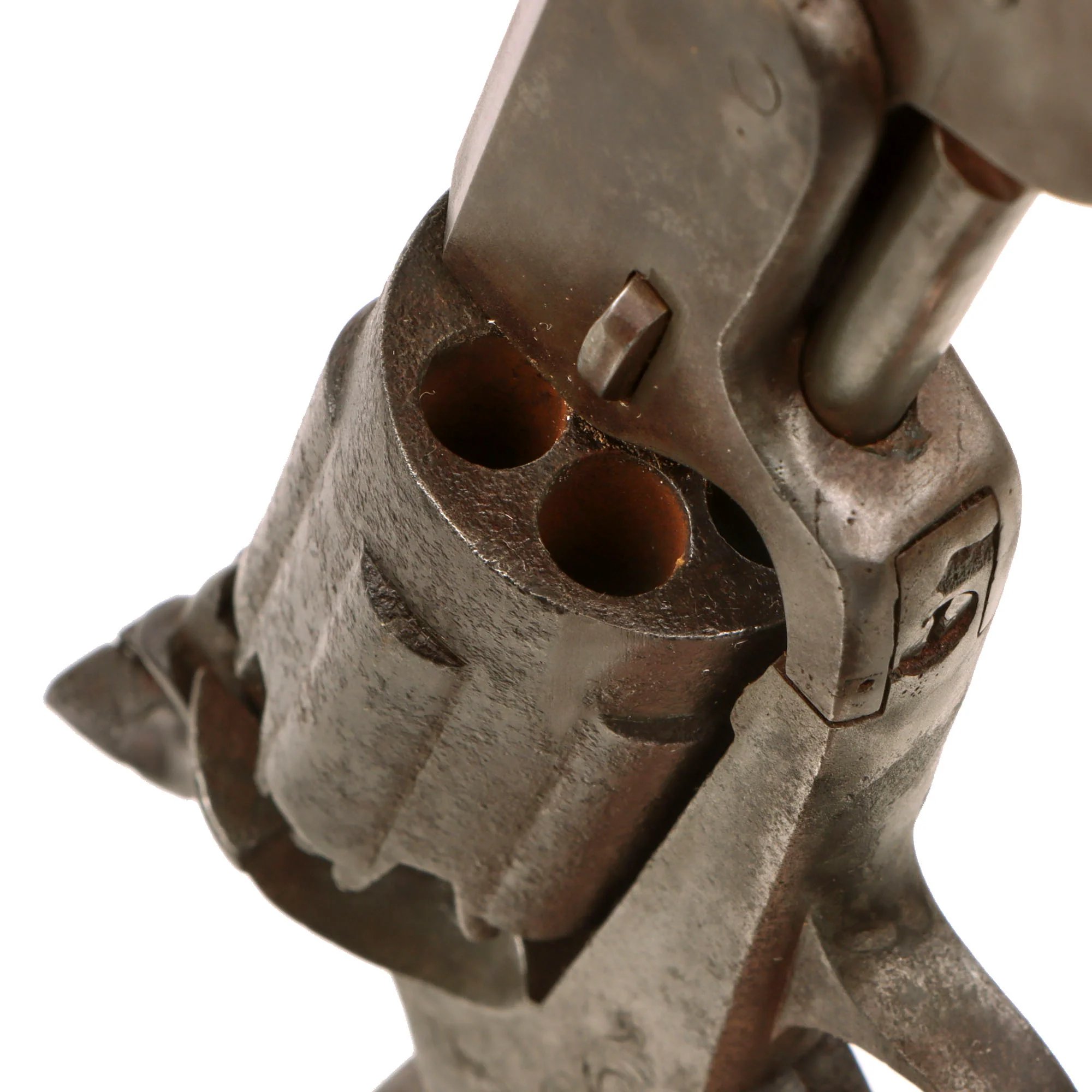

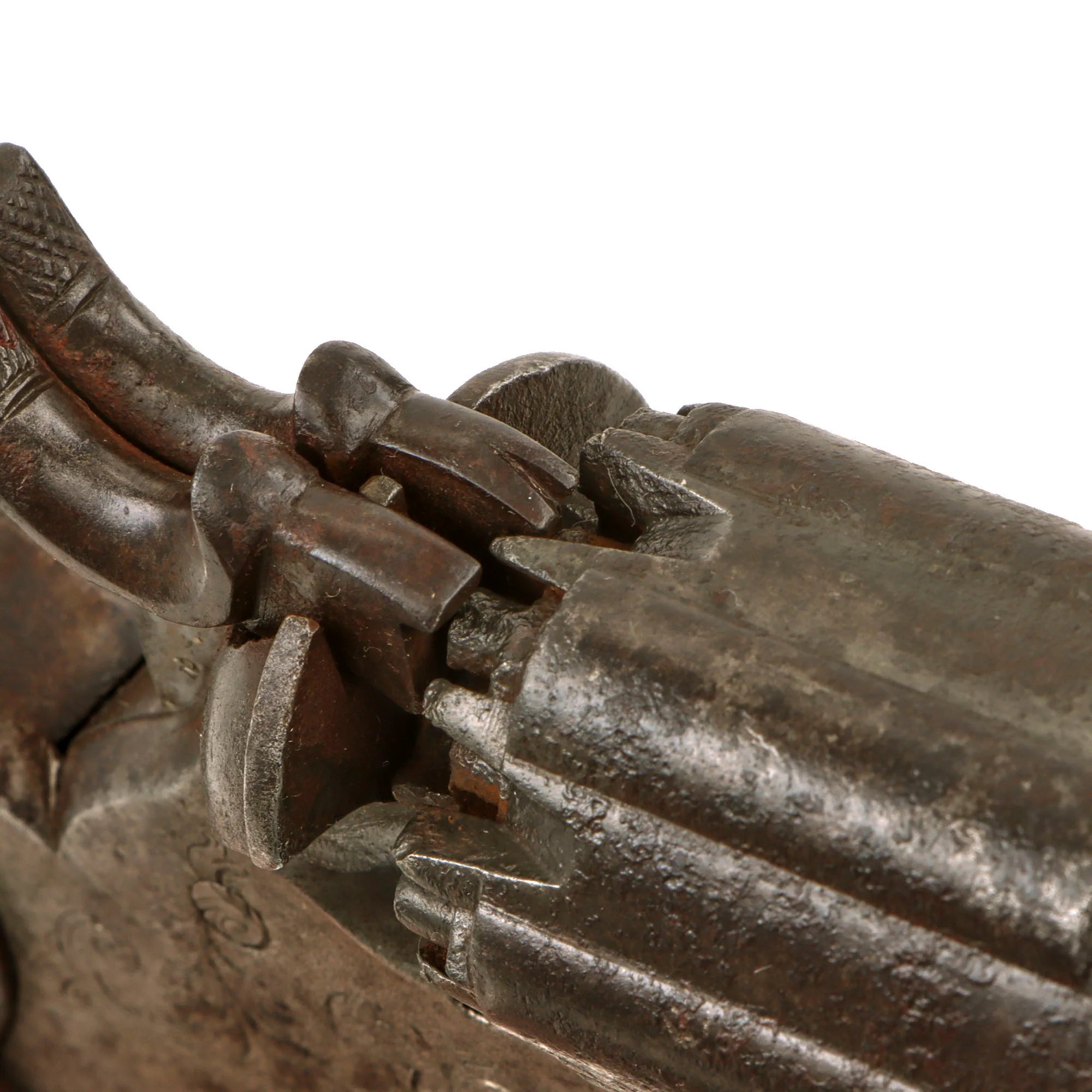

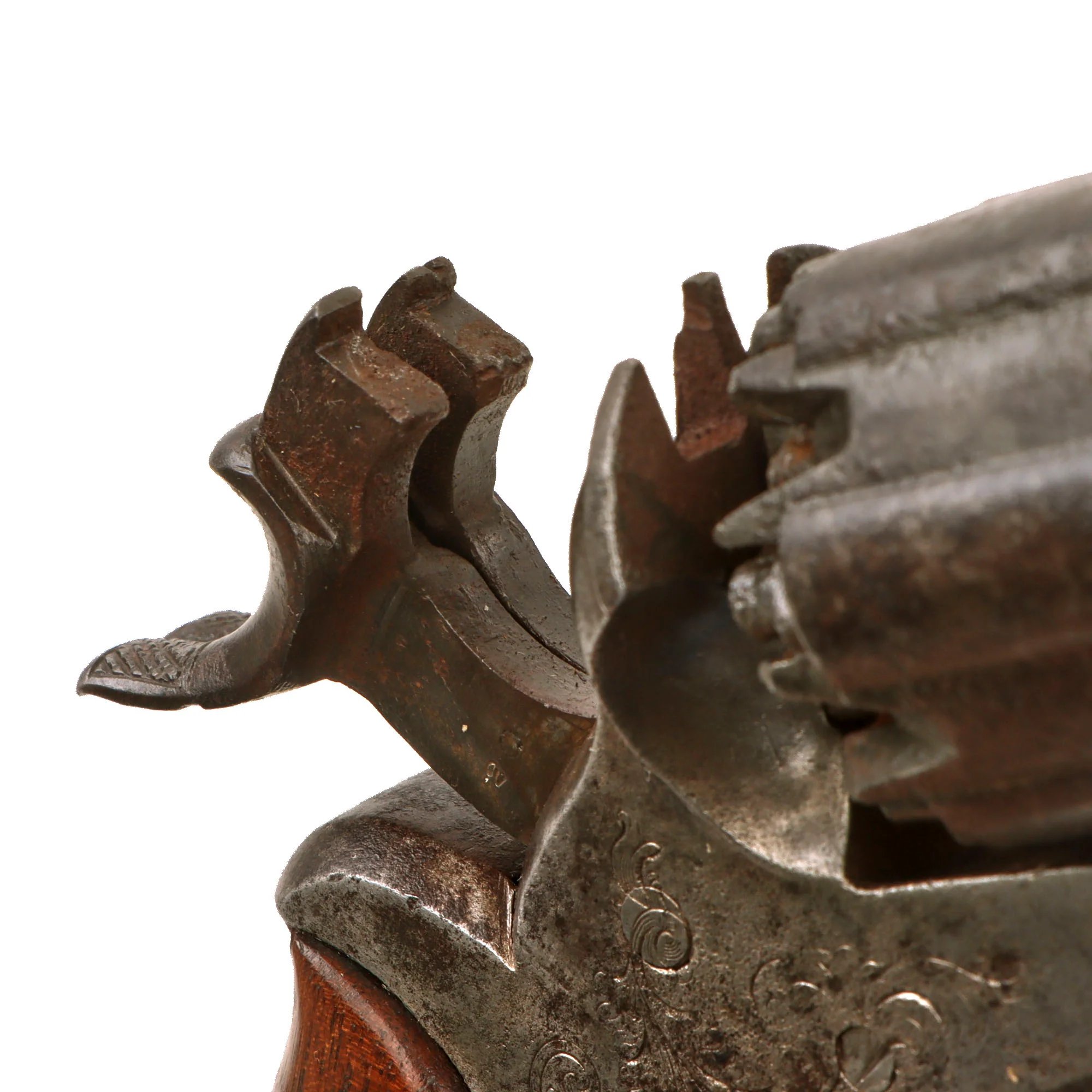

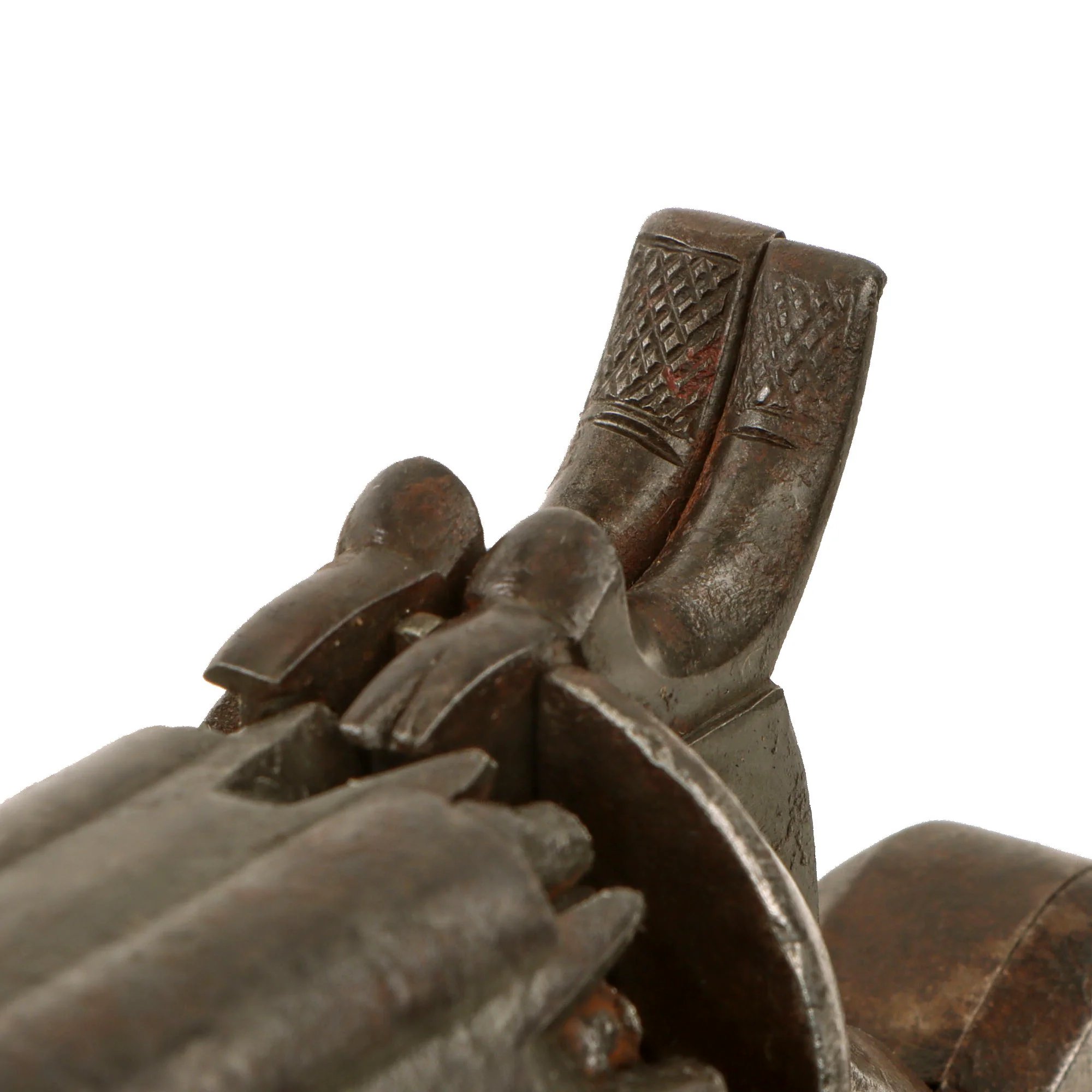

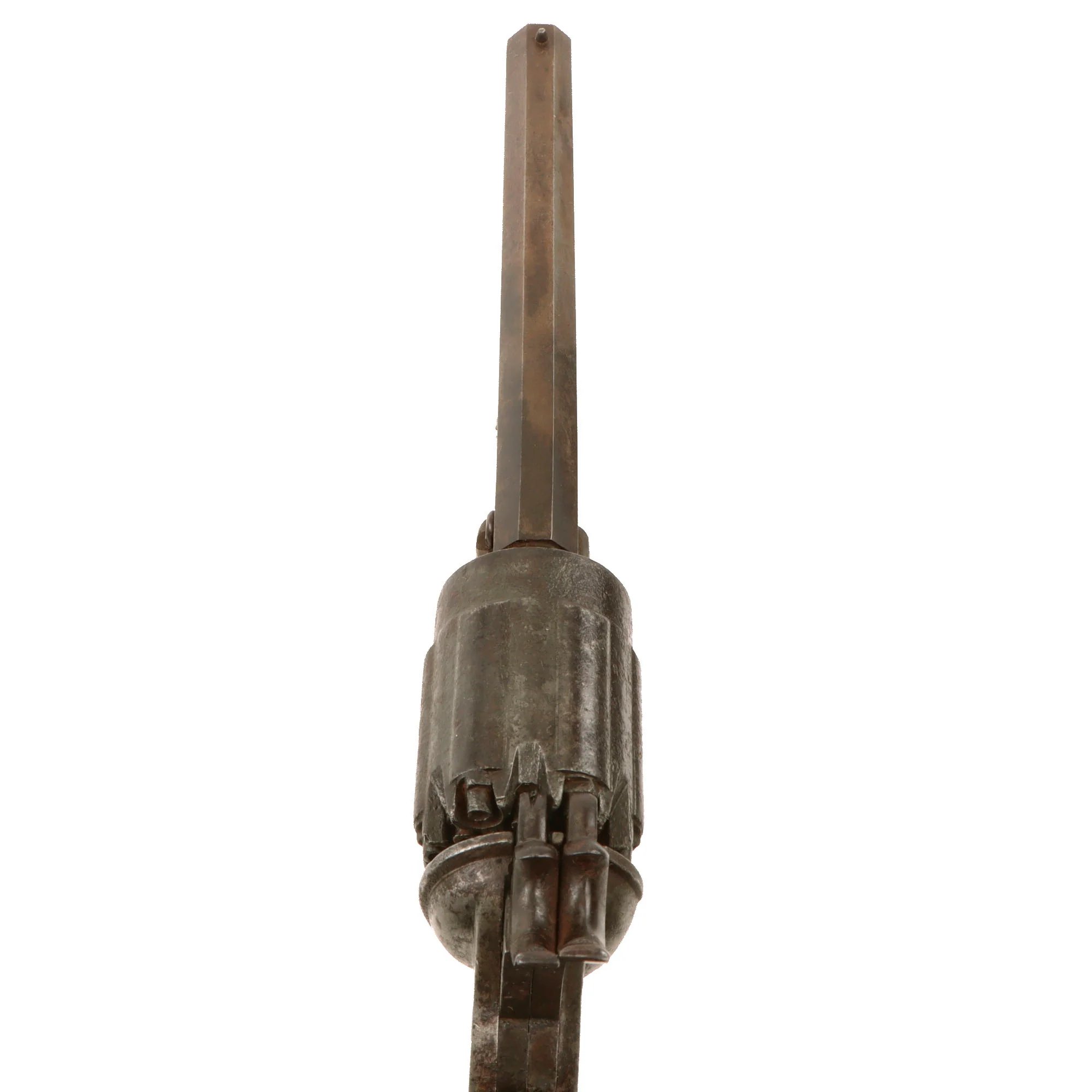

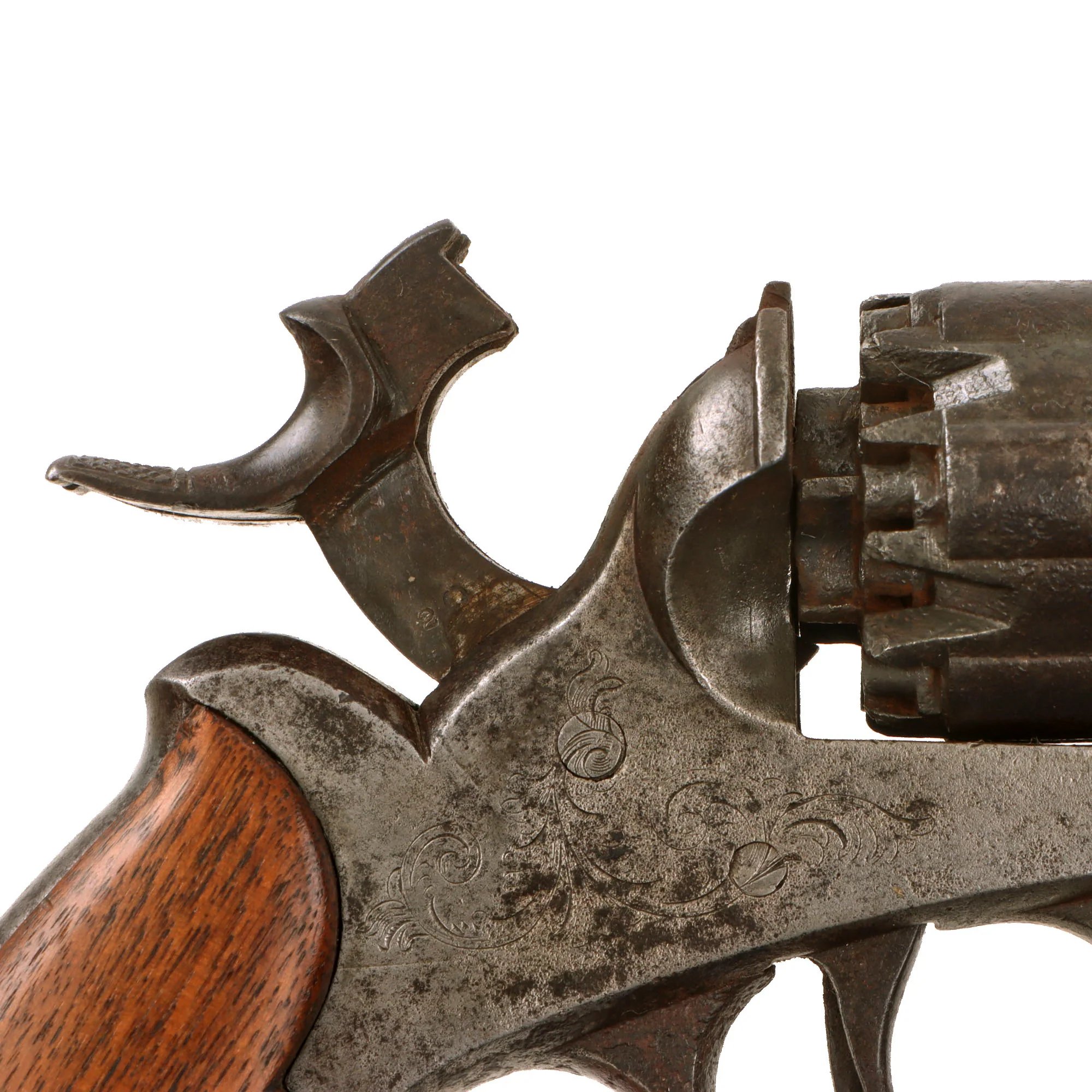

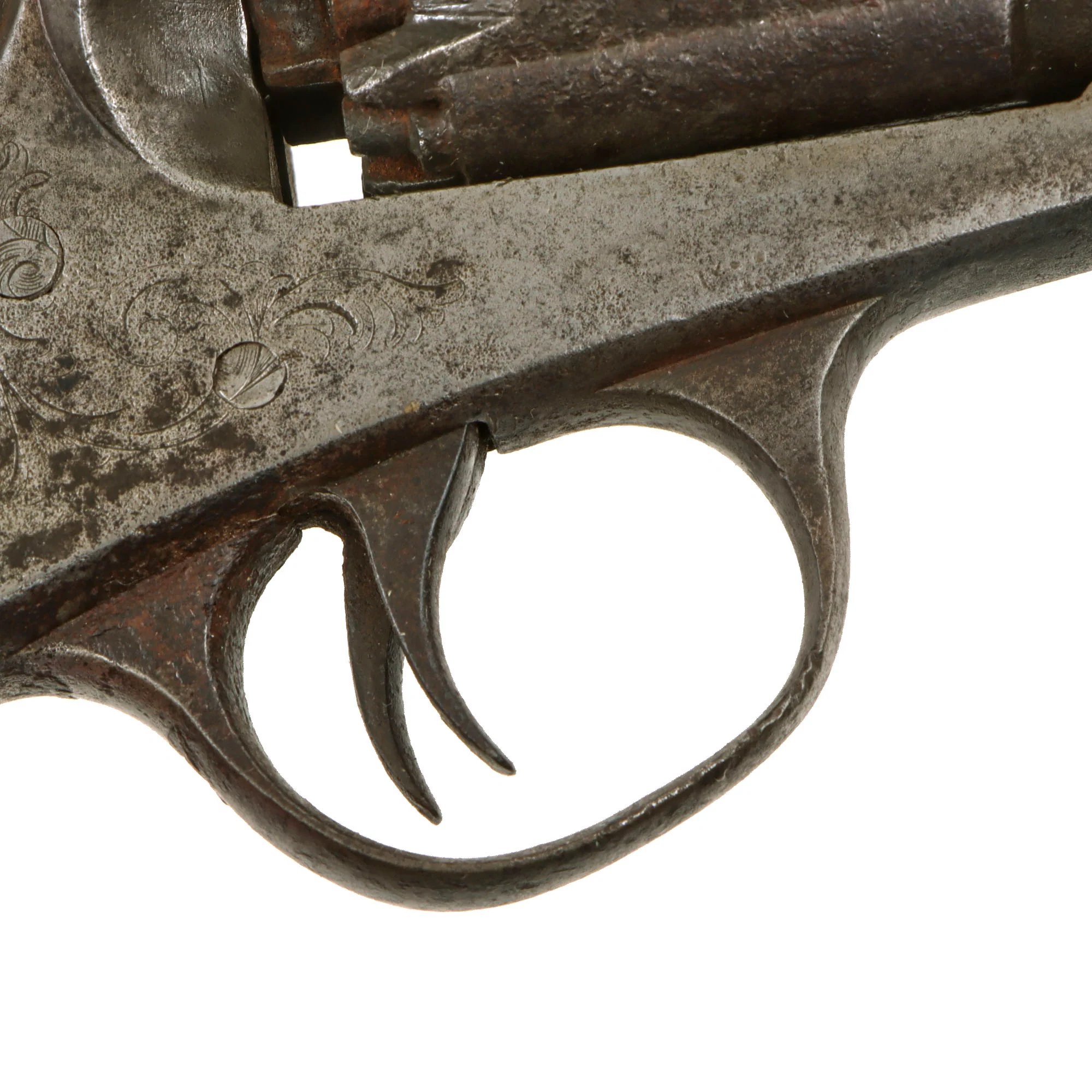

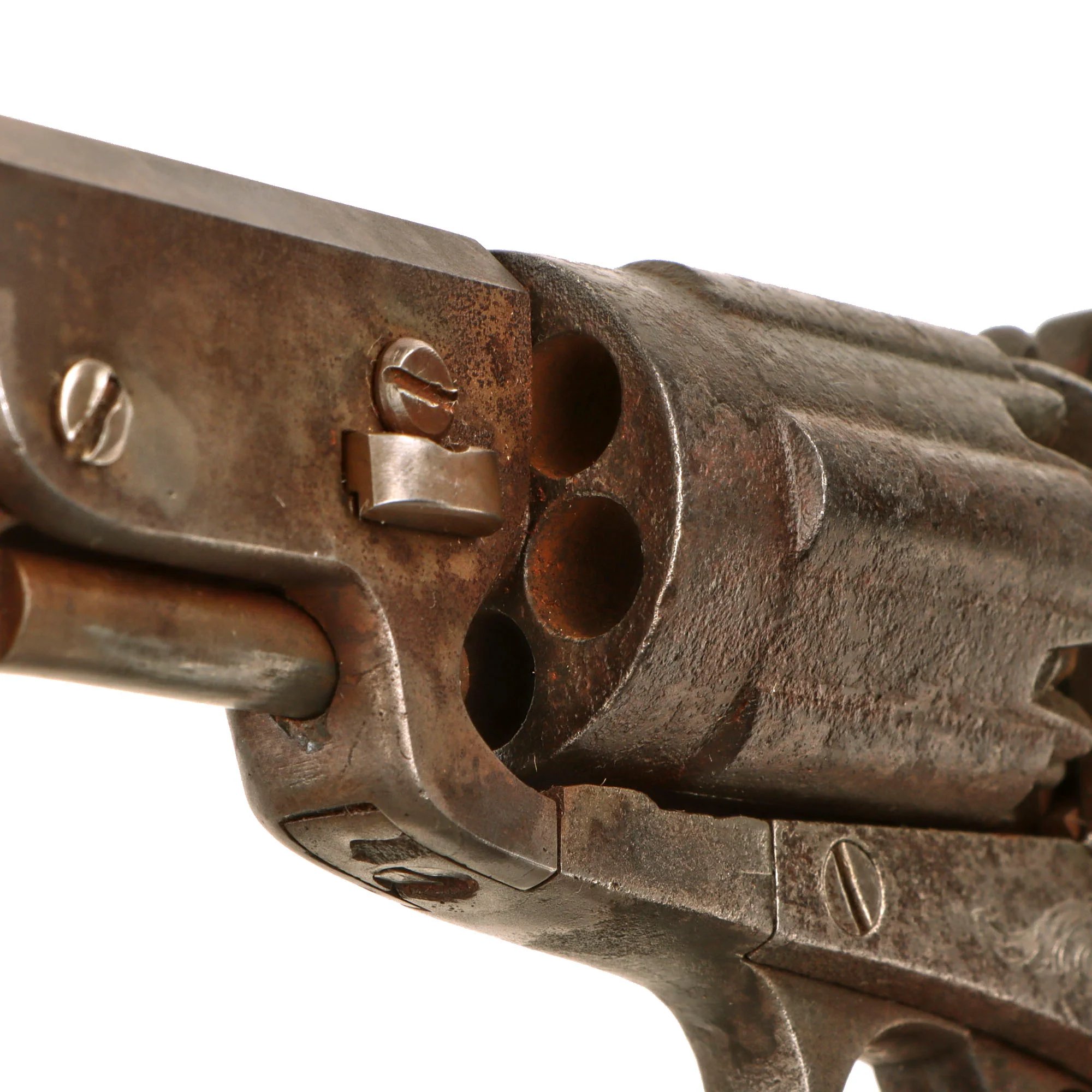

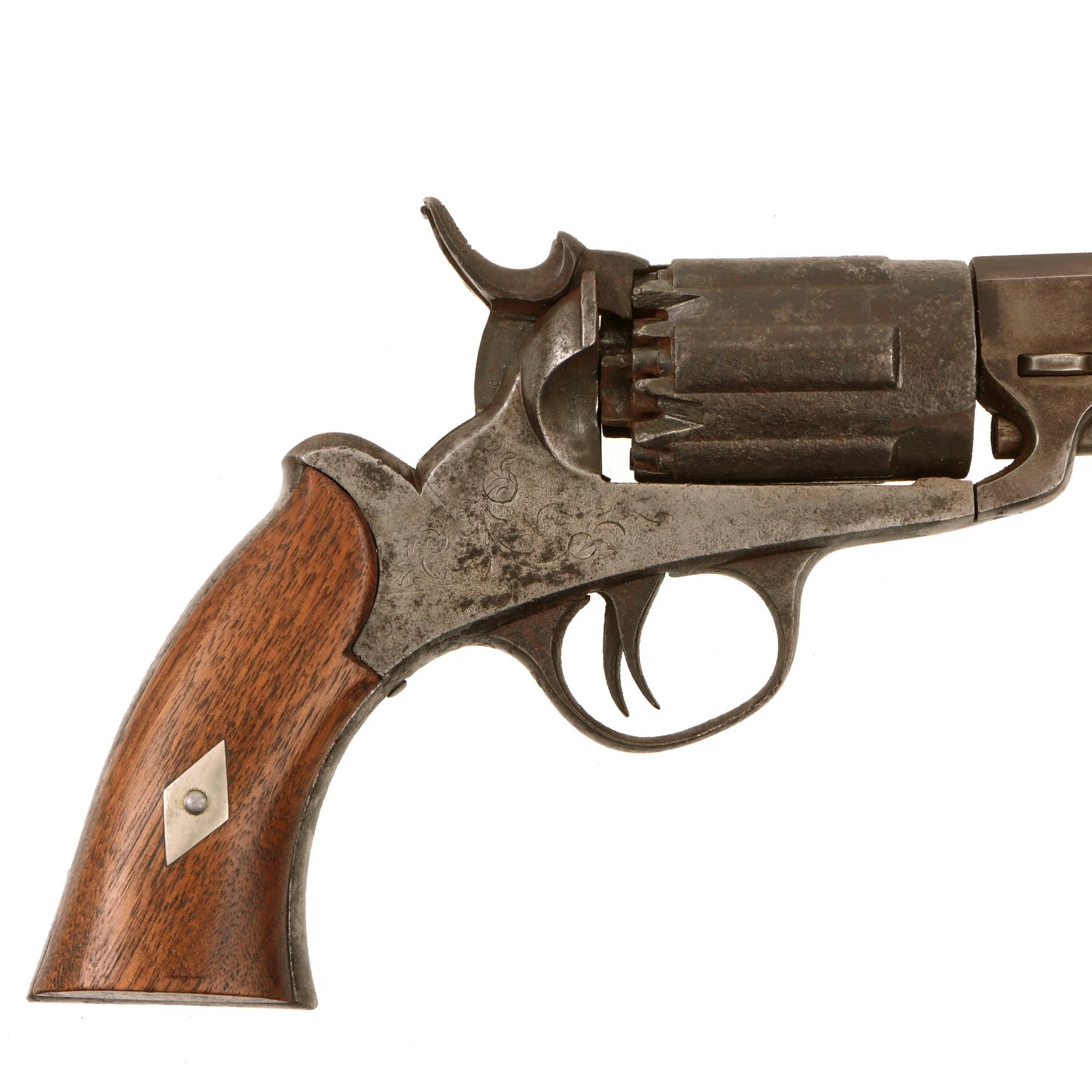

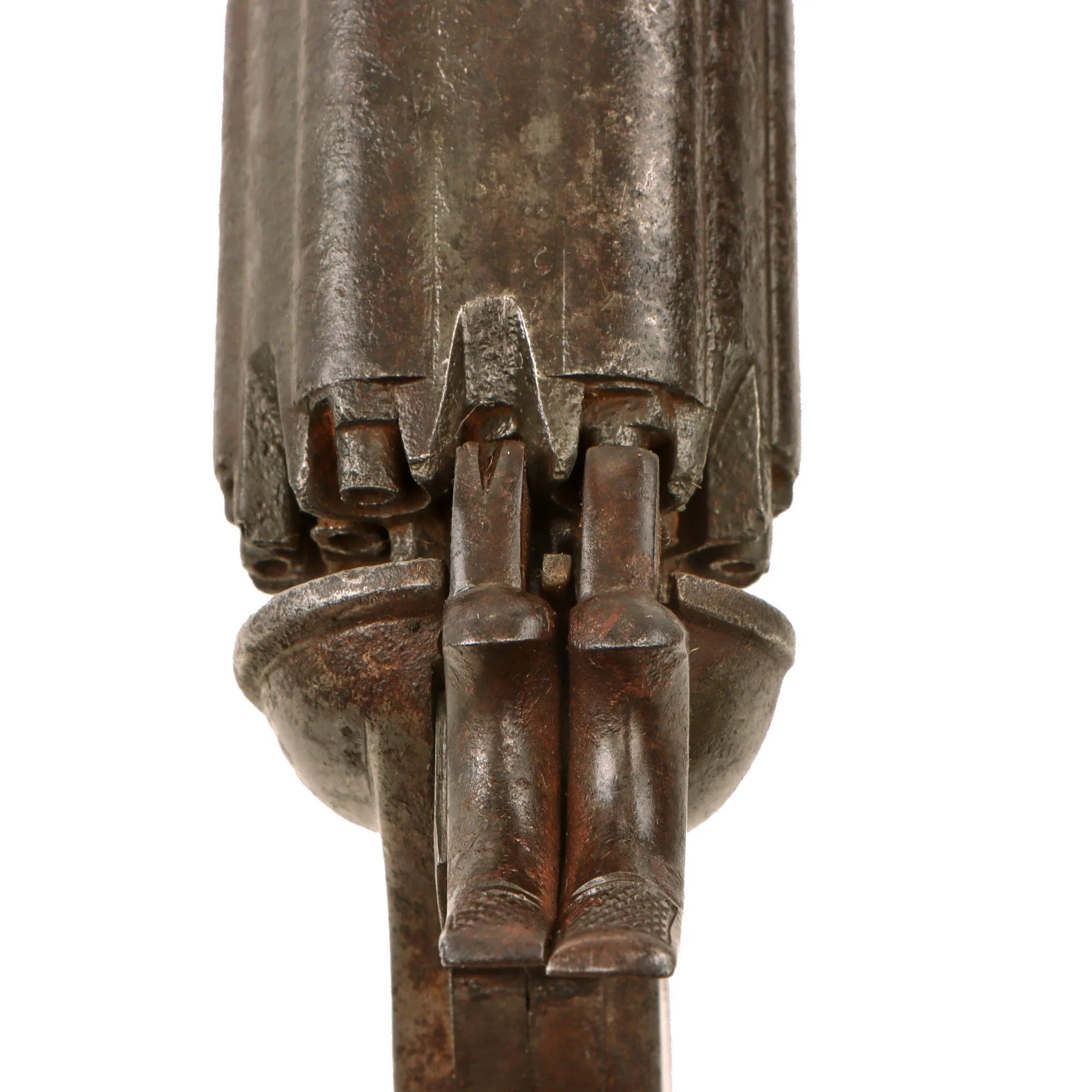

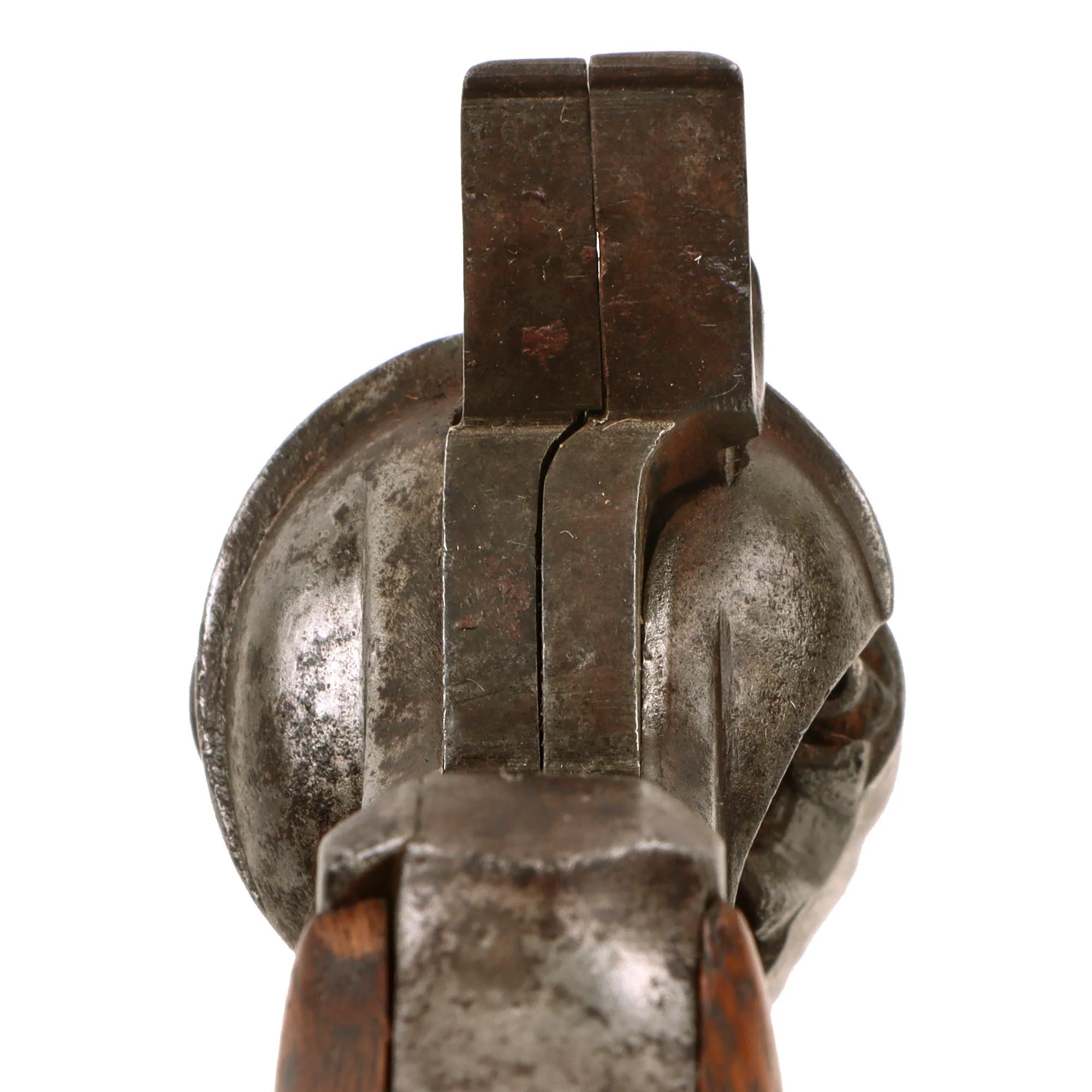

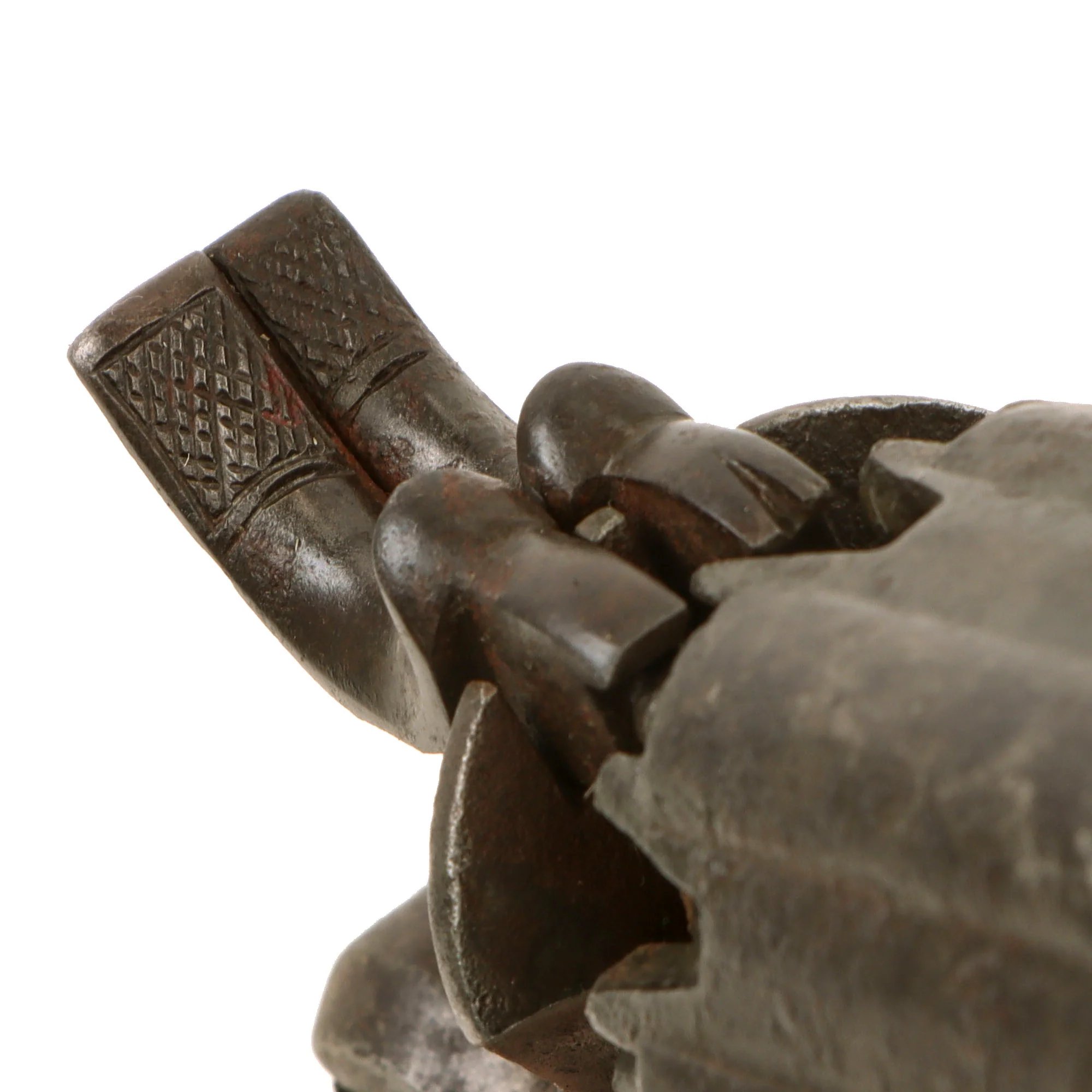

Item DescriptionOriginal Item: Only One Available. The Walch Revolver was a .36 caliber cap and ball black powder revolving action handgun, designed by Walch Firearms & Co, a company started to market this design. Production was done under contract by the Union Knife Company in Naugatuck, Conn., as John Walch did not own production facilities. He had received a patent in 1859 for this unique design, which utilized the rarely seen 'superimposed charge' design, which allowed two cap and ball charges per chambers. These were available in both a five and six chamber models, and the six chamber revolver featured two hammers and two triggers, which definitely made it quite a bit more complicated in terms of loading and firing than a 'regular' revolver.Only 200 Walch revolvers were produced between 1859 and 1862, making them exceedingly rare!Like the later Lindsay 'Two-Shot' Superimposed charge rifle, this design proved that a better design often isn't, particularly when dealing with this style of increasing the firing capacity of black powder firearms. Aside from the difficulties in correctly loading the revolver, there were also significant issues with using the revolver, which led to a large lack of interest by military and others. As with other percussion revolvers of the period, the Navy designation as only due to the .36cal chambering, favored by the U.S. Navy in their martial revolvers, and not due to any contracts.In design, the revolver was fairly similar to the Colt design, except that everything was doubled: two triggers, two hammers, and two cap nipple cones per chamber. The cone for the front charge is offset to the right and closer to the outside of the cylinder, as it sends its ignition charge down a tube on the outside of the, which then discharges the flash into the front of of the cartridge, igniting the front charge. The rear charge cone is directly in line with the chamber, and sends the flash to the rear of the chamber, as is correctly. To make the system work correctly, the 6-chambered cylinder of the Walch had to be loaded with a 'stacked' load, but in such a way that the front charge could not ignite the rear charge. This was accomplished by using specialized type of ball ammunition, which had grease / soap on the interior, so when it was rammed down the cylinder, it would seal the bore below the front charge, which then could be installed more easily.Firing the weapon involved pulling back both hammers, which advanced the cylinder into the battery position. The triggers are set up so that the right trigger, which fires the front charge, is in front of the left trigger, which fires the rear charge. Pulling back on the triggers will discharge the front charge before the rear trigger is even touched, which to Walch's mind 'confirmed' that it was a safe system, however it is unfortunately anything but. If the shooter was not paying attention and pulled the wrong sequence of triggers, the rear charge would discharge first, most likely with catastrophic results, both for the revolver and the hand that held it. This situation was also easily possible should the front charge misfire, not a rare occurrence, making any Walch loaded as intended into a VERY dangerous weapon to use. It's relatively easy to see how these ended up being not very well received, and subsequently very rare on the collectors market. We can also assume more than a few were destroyed due to failures of the system.Here we have a lovely patinated example of a Walch 12 Shot 'Navy' revolver, which looks to have been exposed to the elements for a time, or possibly kept in a holster. The cylinder shows overall oxidation on the exterior, with some past peppering and pitting evident, while the frame shows less oxidation, and the barrel shows the least of all. The grips are in great shape, though they definitely look to be period replacements. We checked all over the revolver, and were not able to see any maker markings, however this is normal, as it looks like some of the very early examples did not have a barrel address marking, perFlayderman's Guide to Antique American Arms. The barrel is about 5 7/8' long, just a bit under the 6' it should be, but this is also a variation that is known.The serial numbers on these revolvers were usually marked on the bottom of the grip, and we can see a20or2Omarking on the bottom of the grip amidst the acanthus leaf engraving. It almost looks like they used two half circle stamps to make the zero. We checked on the frame under the replacement grips, and we did not see any markings on the grip frame, however we did note another20marking on the right side of the right hammer, as well as a20marking on the front of the cylinder, so we believe that this the serial number, and that the stamp they had at the time was a very round zero. That makes this a very early example, provided that is the serial number, and not an assembly number.It does function relatively well, with accurate indexing, though the cylinder lock is either very weak, or possibly it doesn't have one. The hammers line up relatively well with the cap nipple cones, and they fire in the correct sequence when pulled. We checked the bore, and it is in very good condition, showing a partly bright finish with crisp lands and grooves. There is a bit of overall oxidation, but this looks to mainly be from lack of cleaning and moisture exposure, not from actual use.A very nice example of an exceedingly rare Walch 12 Shot Navy Percussion Revolver, the only example that we have ever had! Definitely a great collector's opportunity! Ready to research and display!Specifications:Years of Manufacture: 1859-1862Caliber: .36calAmmunition Type: Cap and Ball - Superimposed ChargesBarrel Length: 6 inchesOverall Length: 12 inchesAction: Single ActionFeed System: 12 Shot RevolverNOTE: International orders of antique firearms MUST be shipped using UPS WW Services (courier). USPS Priority Mail international will not accept these. International customers should always consult their country's antique gun laws prior to ordering.Shipping RestrictionsThis product is not available for shipping in US state(s): New JerseyThis product is available for international shipping.Payment OptionsNot eligible for payment with Paypal or AmazonLegal InformationIMA considers all of our antique guns as non-firing, inoperable and/or inert. Title 18, U.S. Code, Section 921(a)(16) defines antique firearms as all guns made prior to 1899. This law exempts antique firearms from any form of gun control or special engineering because they are not legally considered firearms. No FFL, C&R or any license is required to possess, transport, sell or trade Antique guns. All rifles and muskets sold by IMA that were manufactured prior to 1899 are considered Antiques by the US BATF (United States Bureau of Alcohol, Tobacco & Firearms). Therefore, all of IMA's Antique guns may be shipped to all US States and most nations around the world.These antique guns are not sold in 'live' condition, and are not tested for the the ability to feed or load any type of cartridge. They are sold as collector's items or as 'wall hangers' not for use, and we make no guarantees regarding functionality aside from what is stated in the description. Any attempt at restoring an antique gun to be operational is strongly discouraged and is done so at the risk of the customer. By purchasing an antique gun from IMA you thereby release IMA, its employees and corporate officers from any and all liability associated with use of our Antique guns.Pre-1899 Manufacture, no licenses required, allowed to ship to almost any deliverable address across the globe. Please note that for international shipping, these MUST be shipped using UPS WW Services. International customers should always consult their country's antique gun laws prior to ordering.
